smd led chip 3030 3V/6V PCT3030 high efficiency smd white led high lumen energy saving
Details:
Item name: 1-2W SMD 3030 3V/6V series
Product type: SMD 3030
Voltage: 3/6/V series (High Voltage 9V 18V 36V 54V also available)
Place of Origin: ShenZhen, China
Model: TYF SMD 3030
MOQ: 4000 pcs
The TYF3030 package with higher effiency and CRI, low power consumption. wide beam angle.
It perfectly solves the requirements for high efficiency and long lifetime
Application
Track Light .Spot Light . Street Light . High Bay . UFO Light. Flood Light
Product Details

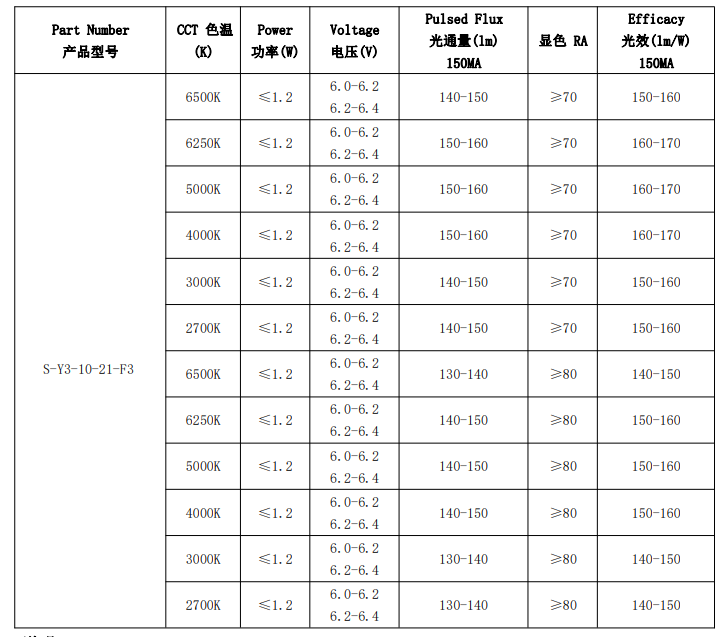

| Part Number | Voltage(V) | Current(mA) | Power(W) | CCT(K) | Efficacy@CRI70(LM/W) | Efficacy@CRI80(LM/W |
| S-Y3-10-12-F3 | 3 | 300 | 1 | 6500-8000 | 140-150 | 130-140 |
| 5500-6500 | 150-160 | 140-150 |
| S-Y3-10-21-F3 | 6 | 150 | 1 | 3800-5500 | 150-160 | 140-150 |
| 2600-3800 | 140-150 | 130-140 |

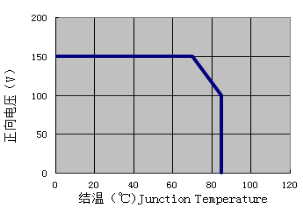

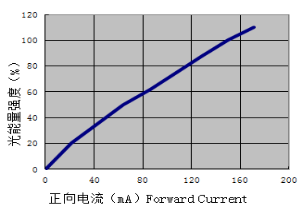

Electrical-Optical Characteristics @3V
Electrical-Optical Characteristics @6V
Dimension
Packing:
Specifications:
Key Specifications/Special Features:
1. LM 80-9000 hours passed,long lifespan,more than 54000 hours
2. Good color consistency, High CRI,High LM
3. 99.99% goldwire from Heraeus inside ,better perfermance
4. Customer design is welcomed
Primary Competitive Advantages:
Strong R&D Forces
- One of biggest R&D technical team of worldwide LED manufacturers. A strong R&D team of more than 40 experienced engineers.
- World standard CNAS Accredited Laboratory.
- Launch highly-competitive new products seasonally.
- Revolutionary launch for a full series of high power & high integration ceramic flip chip led & compact high power SMDs.
Extensive Application Experience & Quality Commitment
- Strict control over raw materials selection.
- 3 Years Warranty at least.
- Reliable long life span; Good Quality Raw Material.
- More than 13 years' experience in LED Field.
- Supported many government lighting projects.
Outstanding Service Level
- Professional Sales Team backing up with top experienced engineers in LED field.
- Best Quality & Best Price & Best Service.
- Professional customization and OEM service.
More Info. about TYF
- Top 3 LED manufacturer
- Obtained 200+ patents
- 12000+ square meters
- SGS, TUV, BV, ISO9001 audited factory
- 400+ employees
- 3 production line, SMD workshop, COB workshop, SMT workshop
- 100KK SMD LED per month
- 3KK COB LED per month
- 10KK other LEDs per month
